In high-precision manufacturing, efficiency and accuracy are paramount. Whether producing medical devices, aerospace components, or FMCG packaging, manufacturers face increasing pressure to optimize their inspection processes without compromising on quality. One of the most effective solutions to this challenge is the multi-station metrology fixture—a specialized setup designed to hold and inspect multiple parts simultaneously.

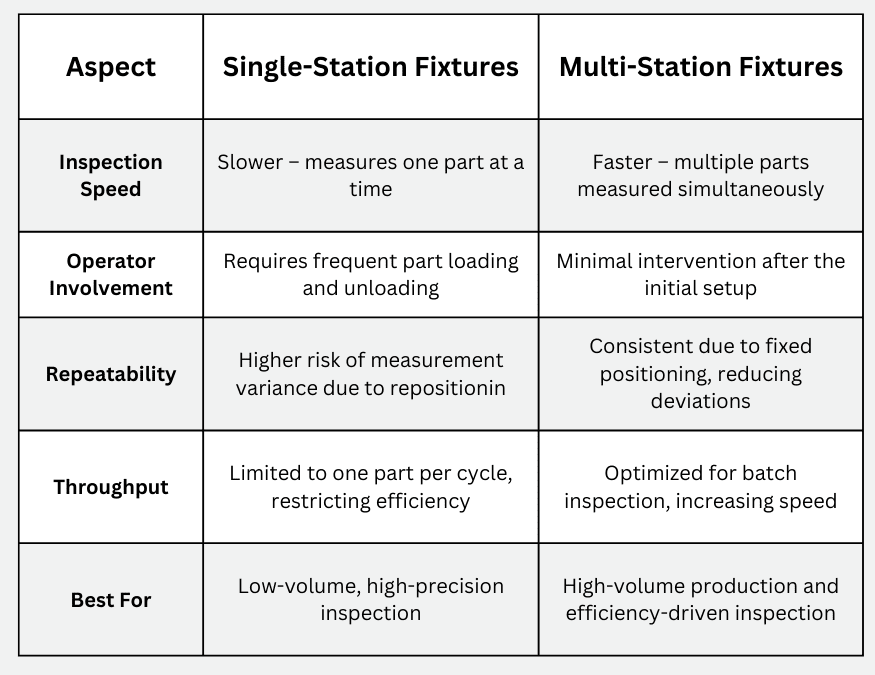

Unlike traditional single-station setups, which measure components one at a time, multi-station fixtures enable parallel inspections, significantly reducing cycle times. By minimizing operator intervention, setup changes, and measurement errors, these fixtures increase throughput while maintaining stringent quality standards. Their impact is particularly evident in industries where high-volume production and tight tolerances must coexist, such as in MedTech, Aerospace, Automotive, and FMCG manufacturing.

Whether you’re a Quality Control Manager, Metrology Engineer, or Operations Lead, understanding the benefits and challenges of multi-station fixtures can help drive productivity, reduce inspection costs, and streamline manufacturing workflows.

What Are Multi-Station Metrology Fixtures?

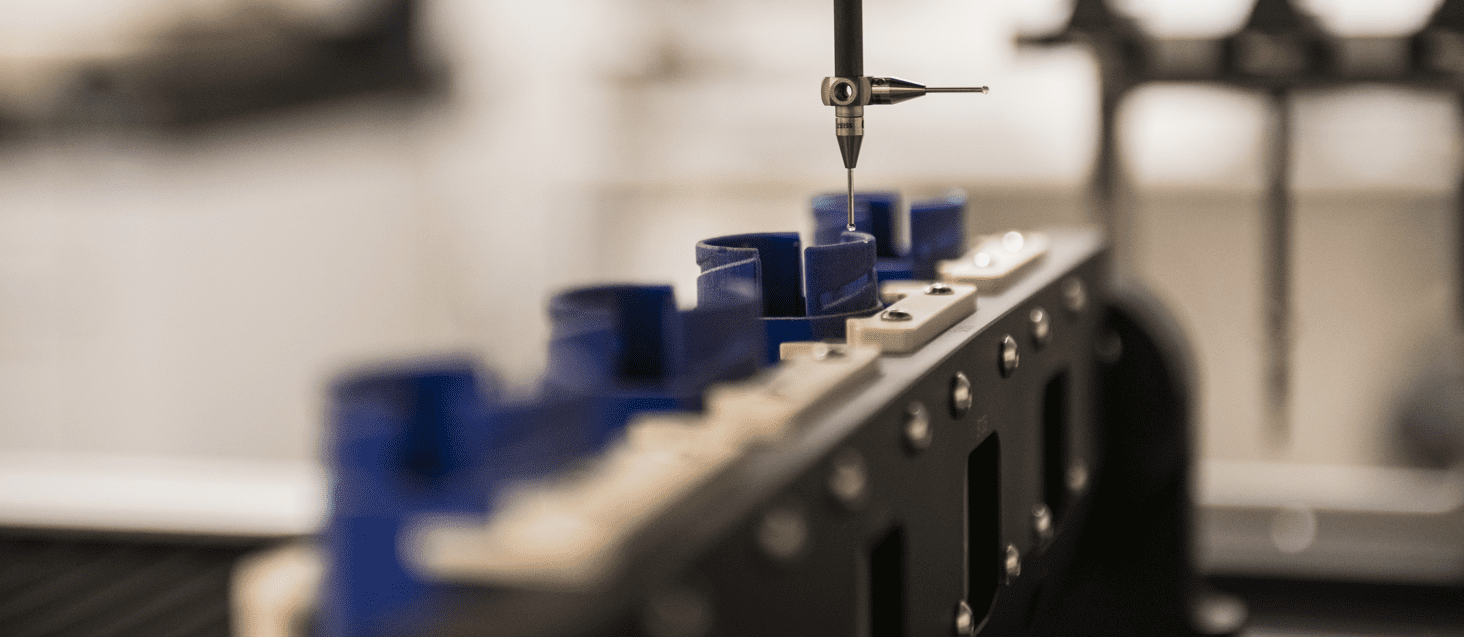

Multi-station metrology fixtures are precision-engineered setups designed to hold multiple components simultaneously during inspection. Unlike single-station fixtures, which measure one part at a time, multi-station configurations allow for batch measurement, significantly reducing inspection cycle times and increasing throughput.

These fixtures are commonly used in CMMs (Coordinate Measuring Machines), vision systems, and other metrology equipment, allowing manufacturers to inspect multiple identical parts or different components of an assembly in a single operation. By eliminating the need for frequent reloading and repositioning, multi-station fixtures enhance repeatability, reduce human error, and improve overall measurement efficiency.

Key Features of Multi-Station Metrology Fixtures

1. Parallel Inspection Capability – Multiple components can be measured at the same time, increasing efficiency.
2. Fixed and Repeatable Positioning – Ensures consistency in measurements across multiple parts.
3. Reduced Setup Time – Operators load several components in a single cycle, eliminating frequent fixture changes.
4. Adaptability to Different Measuring Systems – Compatible with CMMs, vision systems, laser scanners, and optical comparators.
5. Customizable Configurations – Fixtures can be tailored for specific part geometries, tolerances, and measurement requirements.

Multi-station fixtures are particularly valuable in industries requiring high-precision, high-volume measurement. From medical devices and aerospace components to automotive parts and FMCG packaging, these fixtures provide an essential advantage in optimizing metrology workflows while maintaining strict quality standards.

Efficiency Gains: How Multi-Station Fixtures Improve Throughput

One of the primary drivers for adopting multi-station metrology fixtures is their ability to significantly enhance efficiency and throughput in inspection processes. By enabling the measurement of multiple components in a single cycle, these fixtures reduce downtime, optimize resource utilization, and improve overall productivity.

Key Ways Multi-Station Fixtures Improve Efficiency

1. Reduced Setup and Changeover Time

• In traditional single-station setups, operators must frequently load and unload individual components, resulting in wasted time between measurements.
• Multi-station fixtures allow multiple parts to be placed in a single setup, reducing manual intervention and ensuring continuous measurement cycles.
• Example: A medical device manufacturer using a multi-station fixture on a CMM can measure six catheter components in one cycle, rather than individually, reducing total inspection time by 50% or more.

2. Parallel Inspection for Increased Throughput

• With multi-station fixtures, multiple components are measured simultaneously within the same cycle.
• This parallel processing approach maximizes the efficiency of metrology equipment and significantly improves output.
• Example: In automotive manufacturing, multi-station fixtures can hold multiple brake components for simultaneous measurement, ensuring rapid quality verification without disrupting production lines.

3. Minimized Operator Intervention and Human Error

• When operators manually handle and position parts, there is an increased risk of misalignment, variability, and measurement inconsistencies.
• Multi-station fixtures standardize part positioning, eliminating these risks and enhancing repeatability and reproducibility.
• Example: In aerospace component inspection, where tight tolerances are critical, multi-station fixtures ensure that each part is held in a precise, repeatable location, preventing deviations in measurement data.

4. Reduced Machine Downtime and Increased Utilization

• Metrology equipment, such as CMMs and vision systems, represent significant capital investments. Ensuring maximum machine utilization is essential for ROI.
• Multi-station fixtures enable longer, uninterrupted inspection runs, reducing idle time between part setups.
• Example: A multi-cavity mold verification process can benefit from multi-station fixtures, allowing simultaneous measurement of multiple cavities, ensuring higher machine utilization and faster inspection times.

5. Optimized Workflow in High-Volume Production

• Industries like MedTech, FMCG, and automotive require high-volume production and tight quality control.
• Multi-station fixtures enable batch measurement, reducing bottlenecks in inspection processes.
• Example: In FMCG packaging, inspecting multiple bottle caps or dispenser nozzles in one fixture setup improves consistency and ensures product quality at scale.

Quantifying the Efficiency Gains of Multi-Station Fixtures

• Cycle Time Per Part:
  • Single-Station Fixtures: Higher due to single-part measurement, increasing total inspection time.
  • Multi-Station Fixtures: Reduced as multiple parts are measured together, improving efficiency.
• Operator Involvement:
  • Single-Station Fixtures: Requires frequent handling and repositioning, leading to increased labor effort.
  • Multi-Station Fixtures: Minimal intervention after the initial setup, reducing human error and variability.
• Error Rate:
  • Single-Station Fixtures: Higher due to manual intervention, increasing the chance of misalignment and inconsistencies.
  • Multi-Station Fixtures: Lower due to fixed, repeatable positioning, ensuring more consistent measurement results.
• Equipment Utilization:
  • Single-Station Fixtures: Limited by individual part inspection, reducing overall machine efficiency.
  • Multi-Station Fixtures: Maximized by batch processing, improving throughput and ROI.
• Throughput:
  • Single-Station Fixtures: Constrained by sequential measurement, slowing down production cycles.
  • Multi-Station Fixtures: Optimized for mass inspection, significantly increasing productivity in high-volume manufacturing.

Why Multi-Station Fixtures Are Essential for Scalable Metrology

The efficiency improvements provided by multi-station fixtures are not just incremental—they are transformative. By integrating these fixtures into high-precision, high-volume environments, manufacturers can:
✔ Reduce inspection time by up to 50% compared to single-station setups.
✔ Lower labor costs by minimizing manual intervention.
✔ Improve measurement consistency and reliability through standardized positioning.
✔ Maximize machine efficiency, leading to higher return on investment (ROI).

Across industries, the adoption of multi-station metrology fixtures is driving faster inspections, improved repeatability, and lower operational costs.

Key Design Considerations for Multi-Station Fixtures

Designing an effective multi-station metrology fixture requires careful planning to ensure accuracy, stability, and efficiency. Poorly designed fixtures can introduce measurement errors, reduce repeatability, and complicate the inspection process. The following key considerations ensure that multi-station fixtures deliver optimal performance across different industries.

1. Material Selection: Balancing Durability and Weight

The material used in fixture construction plays a critical role in measurement accuracy and longevity.

• Aluminum – Lightweight, corrosion-resistant, and ideal for CMM and vision system applications.
• Steel – Provides higher rigidity but is heavier; best for applications needing extreme stability.
• Polymeric & Composite Materials – Reduce weight while maintaining thermal stability; useful in sensitive measurements.

✔ Example: An aerospace company designing a lightweight aluminum multi-station fixture to reduce thermal expansion effects during high-precision inspections.

2. Fixture Accuracy and Stability

Multi-station fixtures must maintain consistent part positioning across all stations to ensure repeatability.

• Tight tolerances in fixture machining prevent misalignment.
• Kinematic mounts provide stable, repeatable positioning while allowing easy part changes.
• Clamping and fixturing mechanisms should apply minimal force to avoid part deformation.

✔ Example: A MedTech manufacturer using precision-machined cavities to hold fragile catheter components without deformation, ensuring accurate GD&T evaluations.

3. Modular vs. Fixed Designs

The choice between modular and fixed multi-station fixtures depends on production needs.

✔ Example: An automotive manufacturer using a modular fixture to accommodate different brake disc sizes without requiring separate setups.

4. CMM & Vision System Compatibility

Multi-station fixtures must be designed to integrate seamlessly with various metrology systems.

• For CMMs: Fixtures must allow unobstructed probe access to all critical features.
• For Vision Systems: Fixtures should use non-reflective materials to avoid optical distortions.
• For Laser Scanners: Ensure minimal fixture interference with laser reflections and scanning paths.

✔ Example: A semiconductor manufacturer designing a low-profile fixture to prevent shadowing in vision-based inspections of microchips.

5. Fixture Calibration and Validation

To ensure multi-station fixtures perform accurately, they must undergo rigorous calibration and validation.

• Gage R&R studies validate fixture reliability.
• Periodic calibration checks maintain long-term precision.
• Equivalency testing ensures fixtures perform consistently across different metrology systems.

✔ Example: An aerospace company performing Gage R&R studies on a multi-station fixture for turbine blade inspection, ensuring consistent results across multiple machines.

6. Operator Ergonomics and Ease of Use

Multi-station fixtures should be designed to improve operator efficiency and safety.

• Ergonomic loading mechanisms reduce strain during high-volume inspections.
• Quick-release clamps and locating pins speed up part changeovers.
• User-friendly design ensures minimal training requirements.

✔ Example: An FMCG packaging manufacturer using a quick-lock multi-station fixture to allow fast loading of bottle caps during inline quality checks.

7. Designing for Future Scalability

Fixtures should be designed with long-term usability in mind.

• Interchangeable fixture plates accommodate new part designs without complete fixture replacement.
• Flexible station configurations enable adaptation to evolving production needs.

✔ Example: A MedTech company designing a scalable fixture system that can be easily reconfigured for new syringe models without additional tooling.

Key Design Considerations for Multi-Station Fixtures

• Material Selection:
  • Ensures durability, weight balance, and thermal stability for long-term accuracy.

• Fixture Accuracy & Stability:
  • Prevents misalignment, deformation, and measurement errors, ensuring reliable inspections.

• Modular vs. Fixed Designs:
  • Determines adaptability for different part types and production needs.
  • Modular designs allow flexibility, while fixed designs provide higher precision.

• CMM & Vision System Compatibility:
  • Ensures seamless integration with metrology equipment for accurate and repeatable measurements.

• Fixture Calibration & Validation:
  • Maintains long-term measurement accuracy and reliability through periodic validation.

• Operator Ergonomics:
  • Improves ease of use, efficiency, and safety, particularly in high-volume inspections.

• Future Scalability:
  • Supports flexible production and evolving measurement needs, making fixtures adaptable to new part designs.

A well-designed multi-station metrology fixture is not just about holding multiple parts—it’s about optimizing the entire measurement workflow. By incorporating precision engineering, flexibility, and ergonomic considerations, manufacturers can maximize efficiency, accuracy, and repeatability.

Challenges & Solutions in Implementing Multi-Station Fixtures

While multi-station metrology fixtures offer significant efficiency and accuracy benefits, their implementation comes with challenges that must be addressed to maximize their effectiveness. These challenges range from fixture calibration and validation to operator training and long-term adaptability. Below, we explore the most common issues manufacturers face and the best solutions to overcome them.

1. Calibration and Validation: Ensuring Long-Term Accuracy

Challenge:

• Multi-station fixtures must maintain consistent accuracy across all stations, but factors like wear and tear, thermal expansion, and fixture misalignment can introduce errors over time.
• If one station is slightly misaligned, it can skew measurements across all parts, leading to non-conformances in high-precision industries like MedTech and Aerospace.

Solution:
✔ Regular Gage R&R (Repeatability & Reproducibility) Studies – Periodic verification ensures each station provides consistent results.
✔ Thermal Expansion Compensation – Using low-expansion materials like Invar or composite materials reduces measurement drift.
✔ Automated Calibration Systems – Implementing probe re-verification cycles within CMM programs helps maintain accuracy.

✔ Example: A medical device manufacturer integrates automated calibration checks into their multi-station fixture workflow, reducing measurement drift by 30% over extended production cycles.

2. Operator Training & Adoption

Challenge:

• Transitioning from single-station setups to multi-station fixtures requires a learning curve.
• Operators may struggle with proper part placement, fixture maintenance, and software integration, leading to inefficiencies.

Solution:
✔ Hands-On Training Programs – Providing step-by-step guidance ensures proper fixture handling.
✔ Standardized Work Instructions – Clear, visual guides help operators understand proper loading and unloading procedures.
✔ Automated Part Verification – Vision-based systems or fixture sensors confirm correct part placement before measurement.

✔ Example: An automotive supplier reduces fixture setup errors by 40% by introducing color-coded work instructions and automated verification sensors for correct part alignment.

3. Handling Complex Part Geometries & Fixture Interference

Challenge:

• Some components have intricate geometries, sharp edges, or deep cavities, making it difficult to design universal multi-station fixtures.
• Fixture designs can sometimes obstruct probe or optical access, leading to incomplete measurements.

Solution:
✔ Custom Fixture Design with Simulation – Using CAD simulations to optimize probe access before manufacturing the fixture.
✔ Modular Fixturing – Designing fixtures with adjustable clamps and repositionable stations for varying part geometries.
✔ Rotational or Tilting Fixtures – Allowing automated repositioning of parts for full 360° inspection.

✔ Example: An aerospace company uses multi-axis rotational fixtures for turbine blade inspections, eliminating probe obstruction and improving measurement accuracy by 25%.

4. Cycle Time Optimization: Avoiding Bottlenecks

Challenge:

• Even though multi-station fixtures reduce part handling time, measurement cycles may still be limited by CMM probe speed, vision system processing time, or software lag.
• Without optimization, some stations may sit idle, reducing overall throughput gains.

Solution:
✔ Optimized Probe Path Planning – Using AI-driven CMM programming to minimize unnecessary probe movements.
✔ Parallel Processing in Vision Systems – Configuring multi-camera setups to measure multiple stations simultaneously.
✔ Pre-Loaded Fixture Swaps – Implementing a dual fixture setup where one fixture is being inspected while the other is being prepped.

✔ Example: An FMCG packaging company increases throughput by 60% by implementing dual interchangeable multi-station fixtures, ensuring that while one batch is being measured, the next batch is already staged.

Conclusion: Unlocking Efficiency and Accuracy with Multi-Station Metrology Fixtures

As manufacturing industries continue to push for higher precision, faster production cycles, and cost-effective quality control, multi-station metrology fixtures have emerged as a game-changing solution. By enabling parallel inspections, reducing setup times, and minimizing operator intervention, these fixtures significantly enhance efficiency and throughput in high-precision environments.

From MedTech and Aerospace to Automotive and FMCG manufacturing, the adoption of multi-station fixtures is transforming metrology workflows by improving repeatability, reducing measurement errors, and maximizing equipment utilization. However, successful implementation requires careful consideration of fixture design, calibration, operator training, and system integration to fully realize their potential.

By investing in well-designed multi-station fixtures and leveraging best practices in metrology, manufacturers can achieve substantial gains in productivity, accuracy, and scalability—ensuring consistent quality while meeting the demands of high-volume production. As the industry continues to evolve, those who embrace advanced fixturing solutions will be best positioned to stay competitive in an increasingly precision-driven world.
